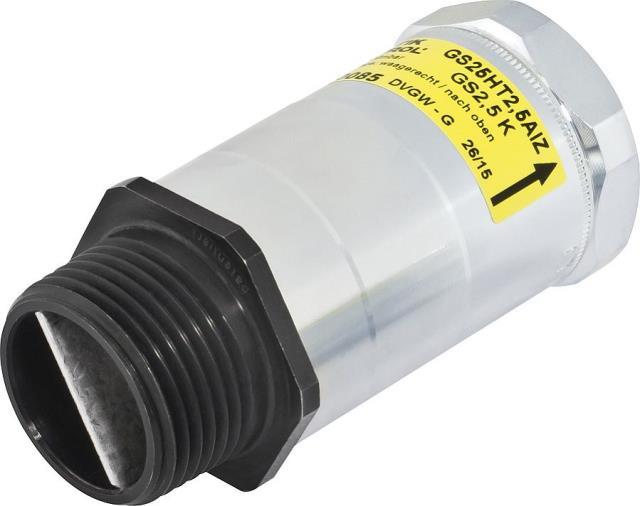

Gasströmungswächter GS25HT2.5AIZ

Preis auf Anfrage

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage

  • GS25HT2.5AIZ
Gasströmungswächter SENTRY GS25HT2.5AIZ für Gasinstallation mit thermisch auslösender... mehr
Produktinformationen "Gasströmungswächter GS25HT2.5AIZ"

Gasströmungswächter SENTRY GS25HT2.5AIZ für Gasinstallation mit thermisch auslösender Absperreinrichtung

  • VN 2 nach DVGW VP305-1 (12/2007), für Netzdruck 15 - 100 mbar
  • mit Überströmöffnung
  • Nenndurchfluss: Vgas = 2,5 m³/h Erdgas H (d=0,64)
  • Nennweite 25, Gehäuse Stahl blauchromatiert,
  • Anschluss eingangsseitig Außengewinde R1 EN 10226-1
  • Anschluss ausgangsseitig Innengewinde Rp1 EN 10226-1
  • Druckverlust bei Nenndurchfluss: Dp <(><<)> 0,5 mbar
  • Einbaulage: waagerecht (Typ K) oder nach oben (Typ K)

Excess Flow Valve SENTRY GS25HT2.5AIZ for residential installation with thermally activated shut-off Device

  • VN 2 according to German DVGW VP305-1 (12/2007) 15 - 100 mbar
  • with bypass orifice
  • nominal flow rate: Vgas = 2,5 m³/h natural gas H (d=0,64)
  • nominal diameter 25, housing material: steel
  • inlet connection male thread R  1 EN 10226-1
  • outlet connection female thread Rp 1 EN 10226-1
  • maximum pressure drop at nominal flow: Dp <(><<)> 0,5 mbar
  • mounting position: horizontal or upward
